  • PROTO,J5420M,Socket 1/2 Dr 20mm 12 Pt Chrome


product_img_big

ITEM NO : 3343275

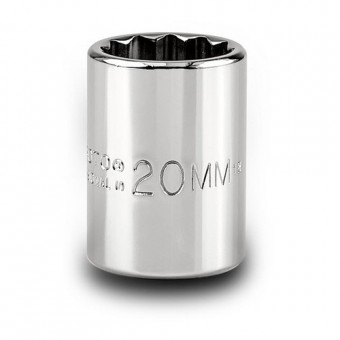

PROTO,J5420M,Socket 1/2 Dr 20mm 12 Pt Chrome

Proto

PART NO : J5420M


price : 308.00 Baht / EA

( Price excluding VAT )


**Special clearance prices! Limited stock available.**

FG1015909
- Proto? 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus? design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus? configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus? internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [MM]: 20
NUT END OUTSIDE DIAMETER [IN]: 1-3/32
DRIVE END OUTSIDE DIAMETER [IN]: 1-3/32
NUT DEPTH [IN]: 11/16
BOLT CLEARANCE DEPTH [IN]: 27/32
OVERALL LENGTH [IN]: 1-1/2
WEIGHT [LBS]: 0.22
DRIVE SIZE [IN]: 1/2
POINT SIZE: 12
FINISH: Full Polish
LENGTH TYPE: Standard
UNIT OF MEASURE: Metric
SPECIFICATION ASME: ASME B107.110-2012
SPECIFICATION AS: SAE AS4984A
