ITEM NO : 2740624

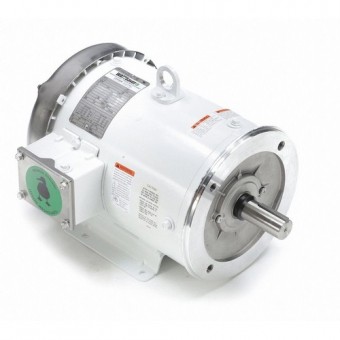

Brake Motor 5 HP 3515 184TC 230/460V

LEESON

PART NO : 132200

Washdown Motor 3-Phase 5 HP 3515 Nameplate RPM Voltage 230/460 Phase 3 184TC Frame Totally Enclosed Fan-Cooled Full Load Amps 12.0/6.0 60/50 Hz Motor Thermal Protection None F Ins. Class Motor Service Factor 1.15 Ball Motor Bearings Max Ambient Temp 40 Degrees C CWSE Motor Shaft Rotation Shaft Dia 1-1/8 In. Shaft Length 2-5/8 In. Length Less Shaft 12-5/16 In. Motor Frame Material Rolled Steel Nominal Efficiency 88.5 Percent RPM Range 3001-3600

STOCK : available
UOM : EA lead time : 30 days weight : 40.36 kg

add to cart
