ITEM NO : 2027074

35-50mm DIAL BORE GAUGE

OXFORD

PART NO : OXD3151450K


price : 6,822.00 Baht / EA

( Price excluding VAT )


Dial Indicating Bore Gauges
29mm 1 1/8" Dial Diameter
Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A 'datum point' can be set by using a setting ring of a known diameter or a micrometer. ' Zero' the gauge to this datum point by rotating the bezel to align 'zero' with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by 'rocking' the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.

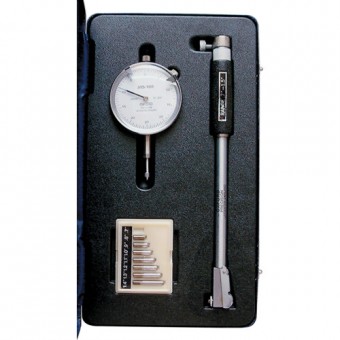

Supplied in a tough hard case.

Type - Metric
Graduation: 0.01mm
Face Dial: 57mm
Reading: 0-100
Travel Per Rev: 1mm
Total Travel: 3mm
More Info


Stock
Location QTY Lead time (Days)
Local Thailand 28 7
International 26 25
