ITEM NO : 3016711

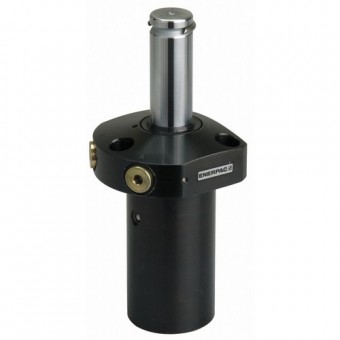

Swing Cylinder Upper Flange 2600 lb.

ENERPAC

PART NO : SULD121

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 2600 lb. Total Stroke 1.10 In. Effective Area Clamped 0.63 sq. in. Clamping Stroke 0.50 In. Max Pressure 5000 psi Series SU Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 1.23 sq. in. Oil Capacity Clamped 0.70 cu in. Oil Capacity Unclamped 1.40 cu in. Max Oil Flow 100 cu in./min.

STOCK : available
UOM : EA lead time : 30 days weight : 1.90 kg

add to cart

• SKU:3016711
