ITEM NO : 3016697

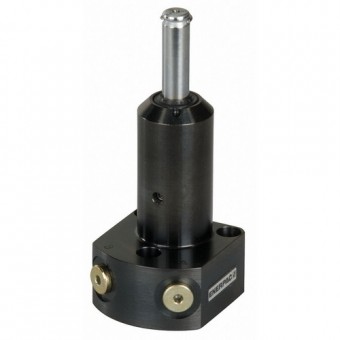

Swing Cylinder Lower Flange 500 lb.

ENERPAC

PART NO : SLLD21

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 500 lb. Total Stroke 0.65 In. Effective Area Clamped 0.12 sq. in. Clamping Stroke 0.32 In. Max Pressure 5000 psi Series SLL Swing Angle 90 Degrees Port Size #2 SAE Effective Area Unclamped 0.24 sq. in. Oil Capacity Clamped 0.08 cu in. Oil Capacity Unclamped 0.15 cu in. Max Oil Flow 12 cu in./min.

STOCK : available
UOM : EA lead time : 30 days weight : 0.71 kg

add to cart
