ITEM NO : 2816070

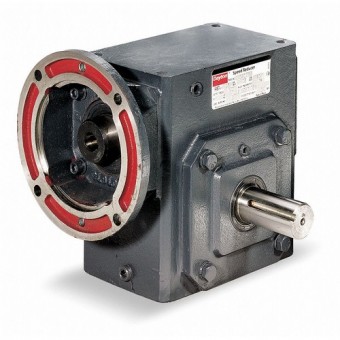

Speed Reducer C-Face 140TC/180C 20 1

DAYTON

PART NO : 4RP62

Speed Reducer C-Face Right Angle Shaft Orientation Standard Duty 1750 Input RPM 88 Nominal Output RPM Worm Center Distance 3.00 In. Bore Dia 7/8 In. 140TC/180C Frame Overhung Load 967 lb. 20 1 Nominal Ratio Max Input HP 2 Max Output Torque 1204 in.-lb. Number of Stages 1 Forward/Reversible Rotation Any Position Except Input Motor Shaft Up Mounting Ball Bearings Hardened Steel Pinion Material Worm Gear Type Cast Iron Housing Material Single Output

STOCK : available
UOM : EA lead time : 30 days weight : 30.98 kg
