ITEM NO : 2506697

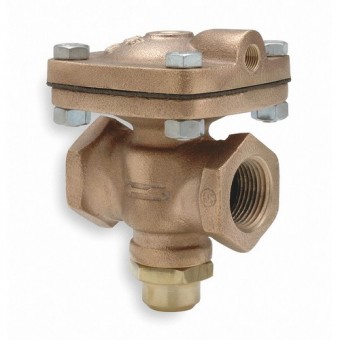

Air Operated Valve 2-Way NC 1-1/2In FNPT

CASH VALVE

PART NO : D-53

Air Operated Valve Pipe Size 1-1/2 In. Valve Design 2-Way Valve Configuration Normally Closed Orifice Dia 1-1/2 In. Coefficient of Volume 35 Min Operating Pressure Differential 0 psi Max Operating Pressure Differential 300 psi Max Fluid Temp 180 Degrees F Air Inlet 1/4 in FNPT Inlet Pressure Up to 250 psi Body Material Brass Gasket Material Buna-N Seat Material 303 Stainless Steel Center Line Pipe Center Size 4 In. Overall Length 4 In. Overall Width 5-7/8 In.

STOCK : available
UOM : EA lead time : 30 days weight : 8.64 kg
