ITEM NO : 2493512

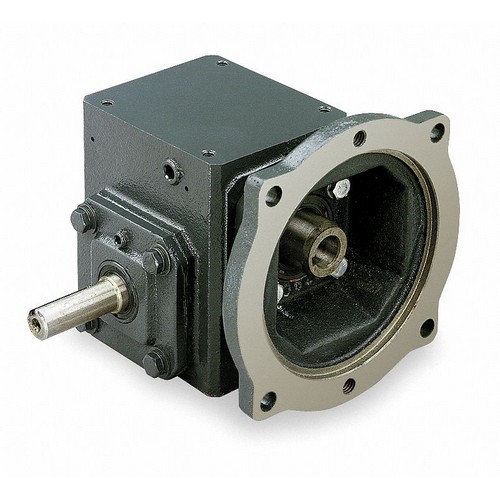

Speed Reducer C-Face 180TC/210C 10 1

DAYTON

PART NO : 3GD61

Speed Reducer C-Face Right Angle Shaft Orientation Standard Duty 1750 Input RPM 175 Nominal Output RPM Worm Center Distance 3.25 In. Bore Dia 1-1/8 In. 180TC/210C Frame Overhung Load 1500 lb. 10 1 Nominal Ratio Max Input HP 5 Max Output Torque 1629 in.-lb. Number of Stages 1 Forward/Reversible Rotation Any Position Except Input Motor Shaft Up Mounting Ball Bearings Hardened Steel Pinion Material Worm Gear Type Cast Iron Housing Material Single Output

STOCK : available
UOM : EA lead time : 30 days weight : 39.46 kg

add to cart
