ITEM NO : 2366883

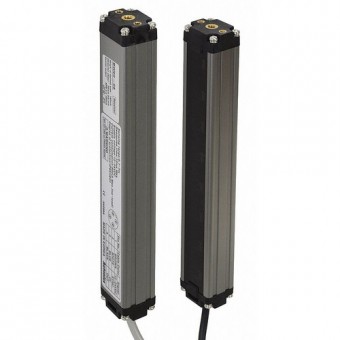

Area Sensor NPN Metal 20mm 48 Beam

AUTONICS

PART NO : BW20-48

Photoelectric Area Sensor Housing Material Aluminum IP Rating 65 Beam Spacing 20mm Sensing Range 0.10 to 7.00m Number of Beams 48 Sensing Height 960mm Circuit Type NPN Open Collector Power Source 12 to 24VDC Cable Connection 4 Pin M12 Cable Length 300mm Light Source Infrared LED Response Time 12 msec Current Consumption 80mA Max Load Voltage 30VDC Max Load Current 100mA Output Mode Light-On Overall Height 980mm Width 28.6mm Depth 22.6mm

STOCK : available
UOM : EA lead time : 30 days weight : 1.40 kg

add to cart
